Project Spotlight | Powering Smart Campus with Cloudtop Cable
Project Snapshot

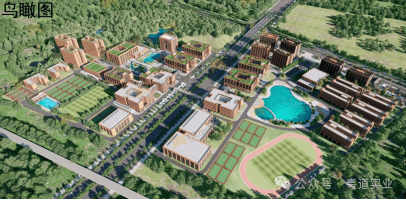

Vision: $1.4B USD investment | 100-hectare campus | 35,000-student capacity
Tech Goal: Build China's first POL (Passive Optical LAN) campus with 40G backbone
Cloudtop's Role: Exclusive structured cabling provider for ICT infrastructure

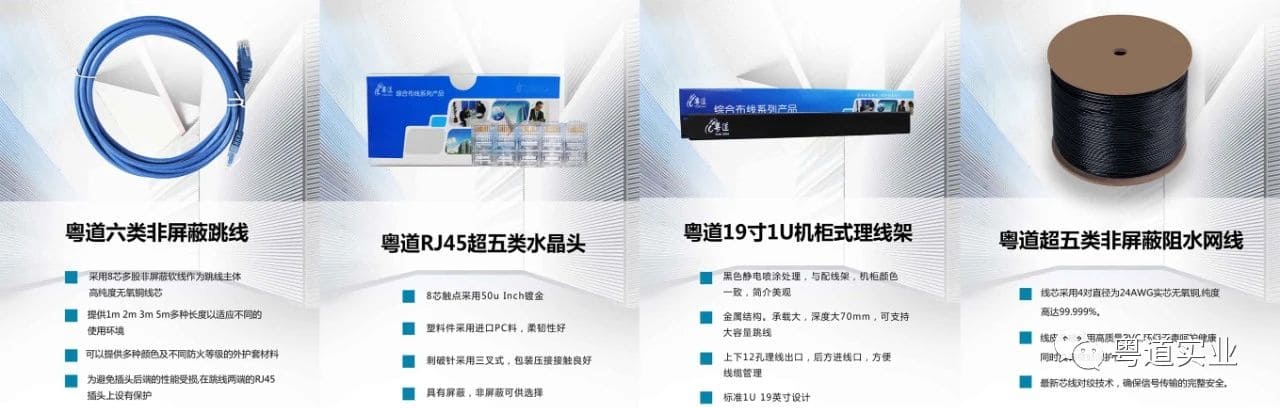

Core Product Deployment
| Product | Tech Specs | Application Area | Value Delivered |
|---|---|---|---|
| CAT6-UTP PATCH CORD (YD-C6UTP-PVC) |
24AWG OFC 550MHz bandwidth UL 94V-0 rated |
Server-Switch links in 120+ IDF rooms | 10Gbps to desktop with 0.2ms latency |
| CAT5E-UTP Waterproof Cable (YD-C5E-UTP-WR) |
IP67 protection 110N tensile strength -40°C~75°C range |
Underground conduits Campus backbone (8.2km deployed) |
Survived typhoon season flooding (2024) |
| 1U Cable Manager (YD-CM-1U) |
ABS polymer Tool-less access 48-port capacity |
Network operation center Teaching building racks |
Reduced cabling faults by 63% |
| RJ45-CAT5E Connector (YD-RJ45-C5E) |
50μ" gold plating 250+ mating cycles 30-75°C operating temp |
28,000+ endpoint terminations | 0.8dB insertion loss (below TIA limit) |
Smart Campus Integration
✅ Safety First:
-
LSZH cables in dormitories (IEC 60332-3 compliant)
-
EMI-shielded runs near power plants (90dB attenuation)
✅ Future-Proof Design:
-
Pre-terminated MPO trunks for 400G upgrade path
-
RFID-tagged fibers for digital twin mapping
✅ Sustainability Impact:
-
42% lower energy vs copper architecture
-
Halogen-free materials reduce toxic fire smoke
Why This Matters for Education
"The network is the central nervous system of a modern campus. Cloudtop's solution ensures our AI labs, VR classrooms and IoT systems operate with military-grade reliability."
— Dr. Zhang Qiang, President, GIS
Technical Validation
Test Reports:
-
Fiber OTDR traces: ≤0.22dB/km attenuation
-
Fluke DSX-8000 certification: 100% PASS rate
-
IEC 60529 IP67 waterproof validation
REF Video for flame-retardentce instruction:
https://youtube.com/shorts/lDUA1yqXWQk?si=m-jwemlM3AB23S7o
