Yuedao High-Flex Drag Chain Cables Empower Screen Printing Machines with Efficient & Stable Operatio

Customer Background
Guangzhou Xinye Machinery Equipment Co., Ltd. is a R&D, manufacturing, and sales-oriented producer of screen printing equipment, specializing in high-precision machines for printing on PCB, silicone, textiles, plastic keys, PET, cardboard, nameplates, IC boards, membrane switch circuits, mobile phone lenses, glass, LCD panels, signage, PVC sheets, decals, and other flat materials. The equipment requires stable signal and power transmission during high-speed, high-frequency reciprocating motions. However, traditional drag chain cables often suffer from sheath wear, conductor breakage, and signal interference, leading to frequent downtime and reduced productivity.

Challenge Analysis

1.Mechanical Stress: During operation, drag chains undergo ~500,000 reciprocating cycles/year. Conventional cables experience conductor/insulation failure due to bending fatigue.

3.Maintenance Costs: Short lifespan (6-8 months) and 3-5 days of downtime per replacement result in high annual maintenance expenses.

Solution Highlights
Yuedao’s tailored High-Flex Drag Chain Cable Solution addresses these challenges:

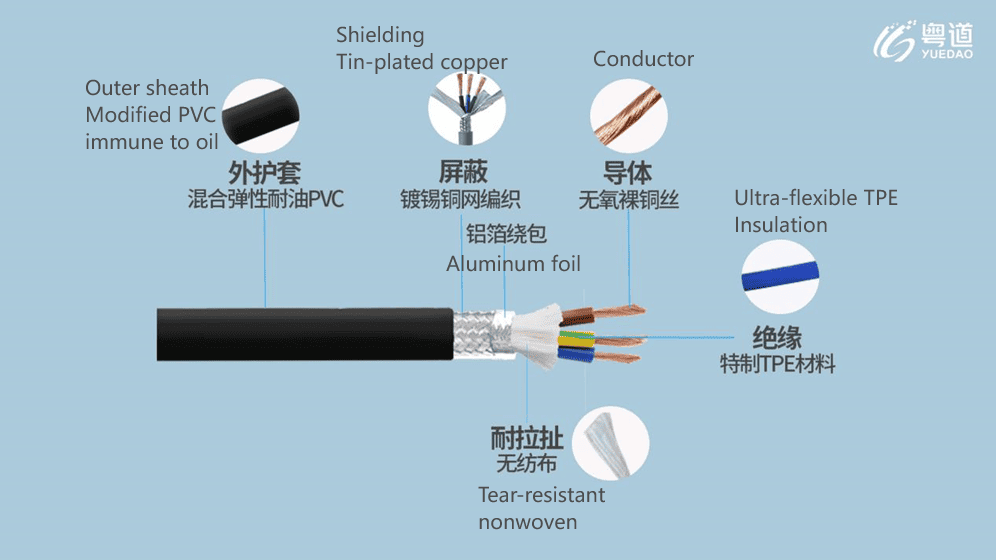

1.Conductor Design

Multi-stranded ultra-fine oxygen-free bare copper wires: 30% higher flexibility, >10 million bend cycles.

Anti-twist stranding technology minimizes inter-conductor friction and stress concentration.
2.Insulation & Shielding

Inner layer: Ultra-flexible TPE insulation (-40°C to +125°C, oil/corrosion-resistant).

Shielding: Tin-plated copper braid (≥80% coverage) + aluminum foil composite for EMI suppression.

3.Outer Sheath
Modified PVC sheath with 5x higher abrasion resistance than standard PVC, immune to oil/dust.

4.Structural Optimization
Round cable design reduces drag resistance; minimal bend radius of 4D (D = cable diameter) for compact spaces.

Implementation Results

1.Extended Lifespan: Cable service life increased to 24+ months, reducing annual maintenance costs by 60%.

2.Enhanced Stability: Signal error rate dropped by 95%, equipment failure rate reduced by 80%, productivity improved by 15%.

3.Environmental Compliance: Passed 500-hour salt spray test, ASTM D471 oil resistance test, and -40°C cold bend test, ensuring reliability in harsh conditions.

Conclusion
Yuedao’s high-flex drag chain cables resolve reliability challenges in high-frequency screen printing operations through material innovation and structural optimization, delivering critical support for industrial efficiency and stability.

Welcome to contact us for customized-production.
