Description
Typical Applications

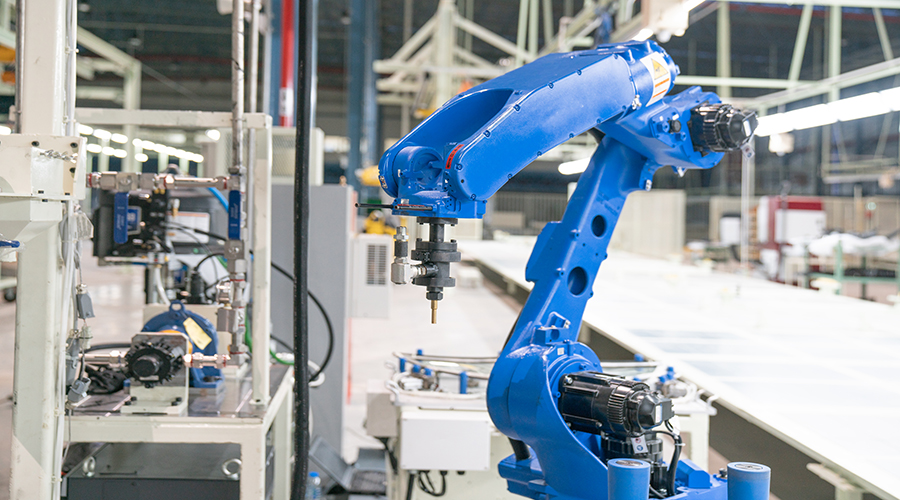

- Industrial Robots: Wiring for robotic arm joints, power transmission in welding robots
- Automation Systems: CNC machines, 3D printers, logistics sorting lines
- Special Environments: Automotive workshops (oil resistance), outdoor AGVs (UV resistance)
Key Advantages
- Superior Flexibility: Minimum bending radius of 7× cable diameter, supports 5m/s speed and 80m/s² acceleration
- Harsh Environment Durability: Special PVC jacket for oil, water, and UV resistance (-15°C to +70°C)
- Certified Safety: Compliant with CE, ROHS, CCC, and ISO standards
- Custom Solutions: Flame-retardant, high-temperature, or cold-resistant versions available
More Details

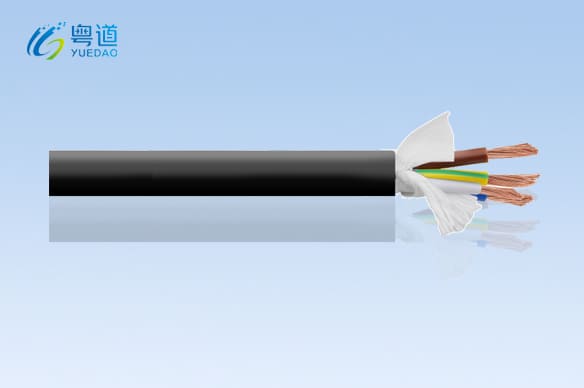

Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 300/500V |
| Bending Radius | ≥7× cable diameter (dynamic) |
| Max Speed | 5 m/s |
| Max Acceleration | 80 m/s² |
| Temperature Range | -15°C to +70°C (custom high-temp versions available) |
| Conductor | Ultra-fine oxygen-free copper strands |
Certifications & Support
- Global Certifications: CE, ROHS, CCC, ISO 9001
- Warranty: 12-month quality guarantee with lifetime technical support
- Customization: Tailored lengths, colors, and material upgrades
FAQ
Q: How to confirm compatibility with high-speed drag chains?
A: Ensure alignment with bending radius, speed (≤5m/s), and acceleration specs. Our cables are lab-tested for dynamic performance.
Q: Do you provide samples for testing?
A: Yes! Free samples and third-party test reports are available upon request.
Need high-temperature or custom-length cables?
Contact Our Engineers for a Tailored Solution →
