Description

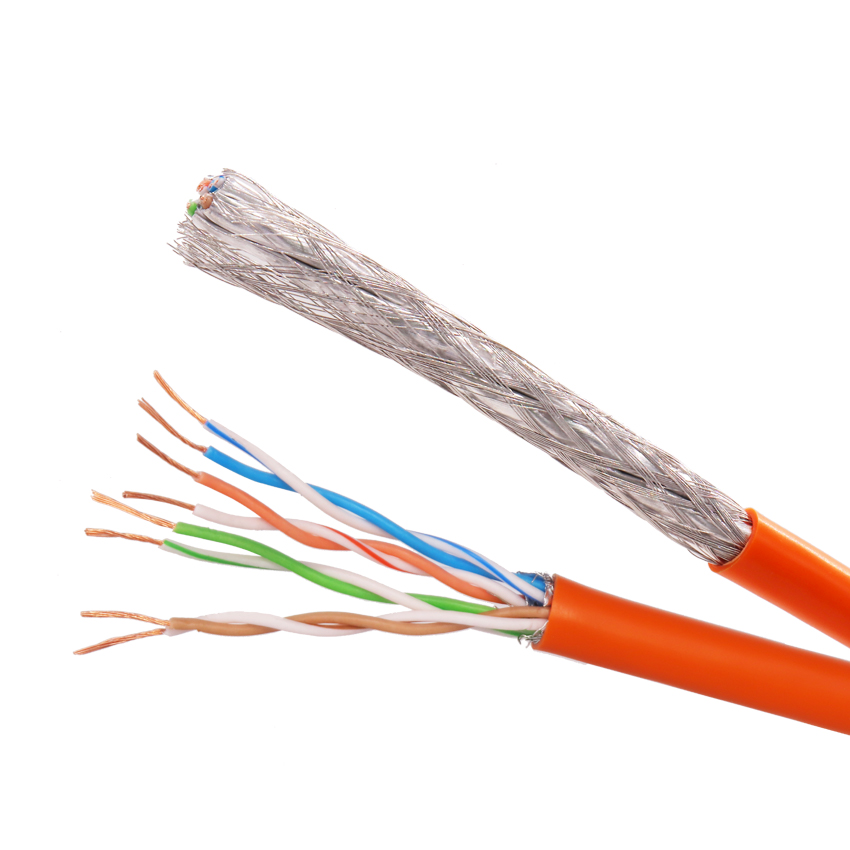

Cat.7 S/FTP Cable
High transmission efficiency
The Cat7 S/FTP 4 Pair Cable provides 600MHz bandwidth over a distance of 100 meters, and the normal application rate is 10GbPs.

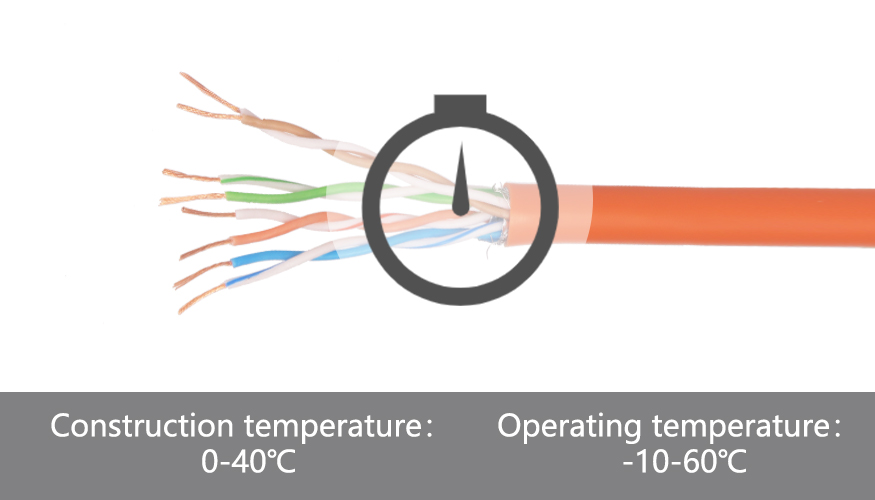

Operating temperature
Our operating temperature range
Our products meet international performance standards
and environmental requirements.

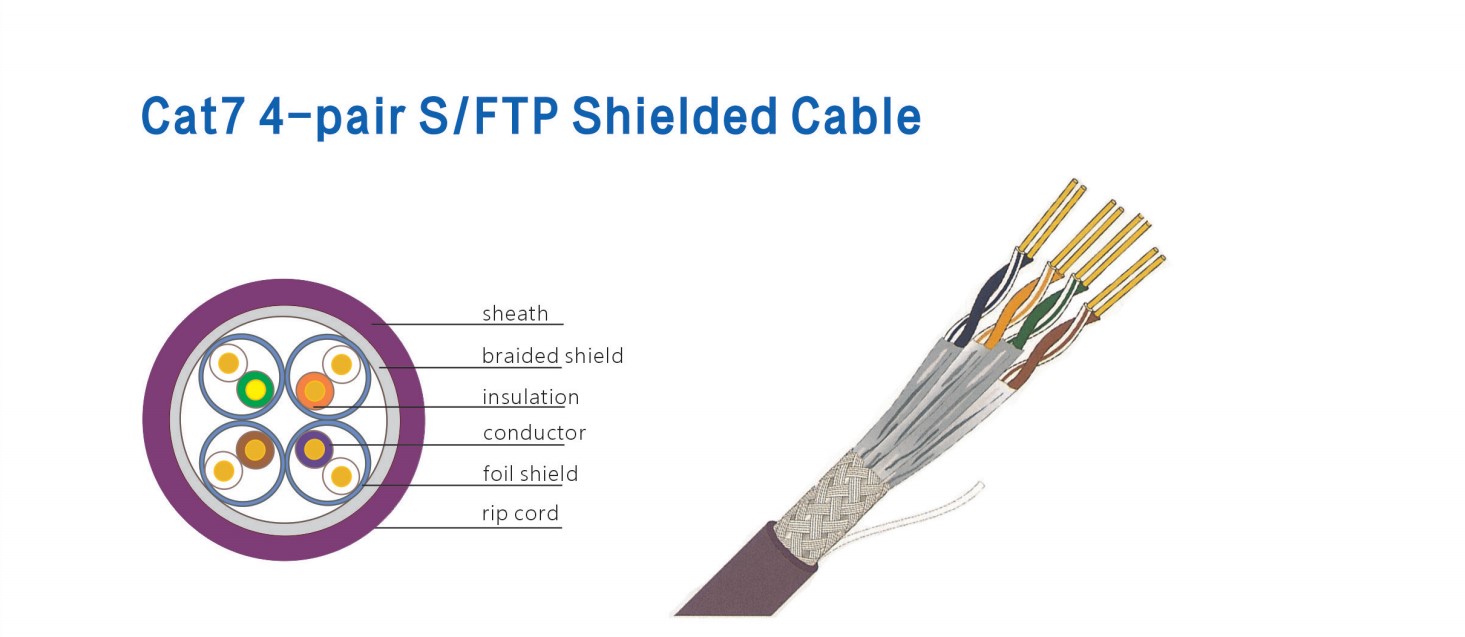

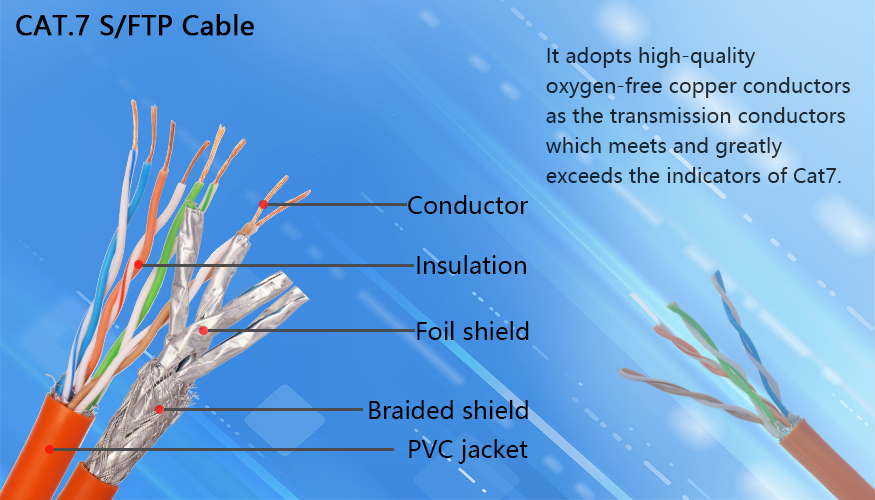

Structural details of the product
Low signal loss and high transmission rate
High-quality insulating material, the outer sheath of PVC material is stretch-resistant and more durable.

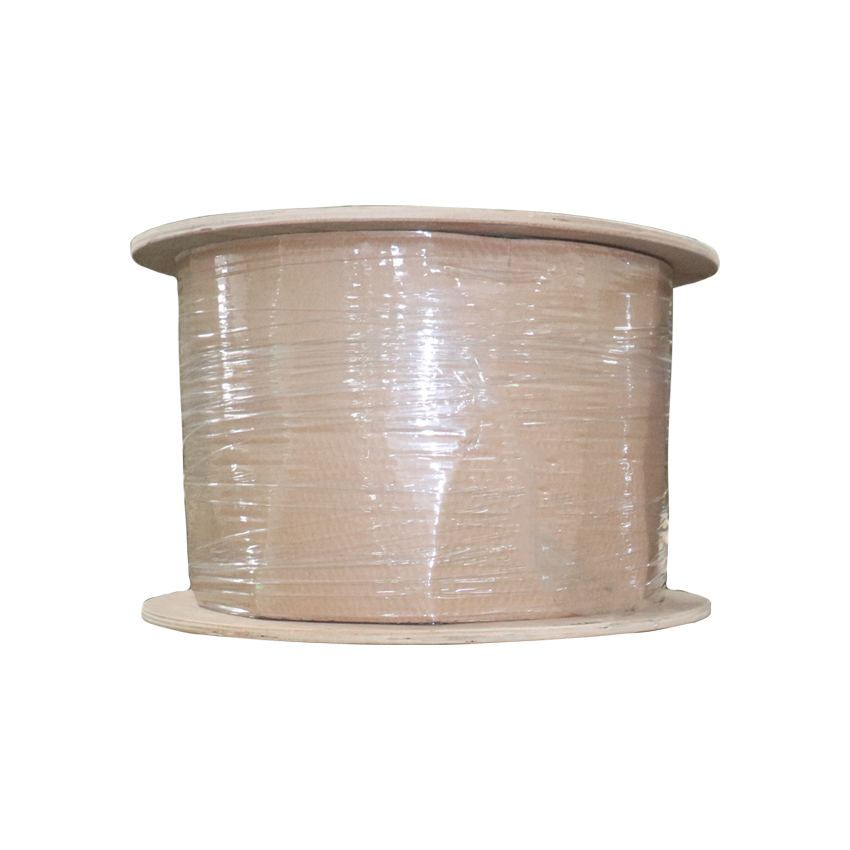

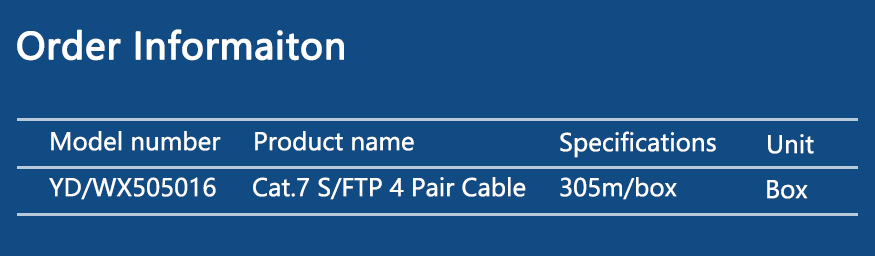

Product specifications and packaging can be customized according to your needs.

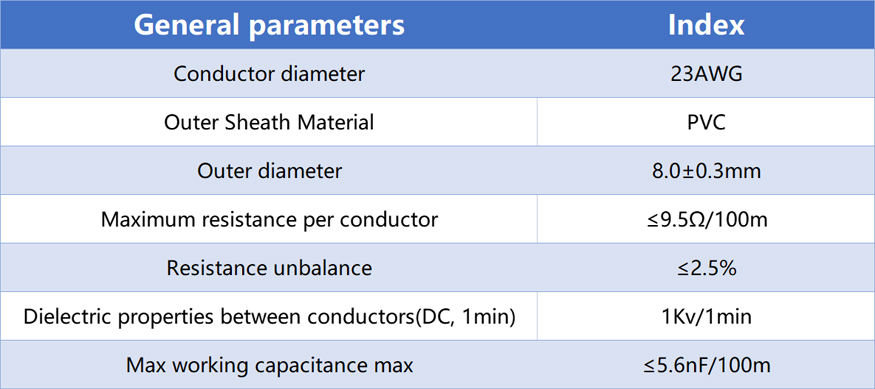

Parameter
We provide conductor diameter size customization service
Application&Advantage
Advantage:
High bandwidth: Provide 600MHz bandwidth within 100 meters distance, typical application rate is 10G bPs, far more than Cat5e and Cat6, suitable for high-speed data transmission.
High bandwidth: Provide 600MHz bandwidth within 100 meters distance, typical application rate is 10G bPs, far more than Cat5e and Cat6, suitable for high-speed data transmission.
Low interference: each pair of wires using aluminum foil longitudinal package, four pairs of wires outside the overall use of tinned copper wire braided network total shielding layer, compared with non-shielded cables, in order to ensure the same level of transmission bandwidth under the premise of the S/FTP-type shielded cable shielding interference ability to improve the 25dB, up to 90dB, can be used for the need for anti-electromagnetic interference requirements of the use of very high environmental, the overall shielding system has a very high level of signal shielding and confidentiality. The overall shielding system has high signal shielding and confidentiality.
Excellent transmission performance: the product selects high-quality oxygen-free copper as the transmission conductor, using chemical foam insulation, greatly improving the transmission capacity of a single conductor, the overall electrical transmission performance of the cable is reliable and excellent, to reach and exceed the indicators of the seven types of systems.
Strong compatibility: downward compatible with Cat5e, Cat6 and other standards, easy to upgrade the existing network.
Application:
Data Center: Suitable for high-density, high-bandwidth environments, supporting high-speed connectivity for servers and storage devices.
Application:
Data Center: Suitable for high-density, high-bandwidth environments, supporting high-speed connectivity for servers and storage devices.
Enterprise networks: for office networks that require high reliability and low latency, especially for enterprises with high network performance requirements.
Industrial environments: In factories or workshops with severe electromagnetic interference, the shielding design ensures signal stability.
Intelligent Buildings: For high-speed data transmission in intelligent buildings to support video surveillance, smart home and other applications.
Medical facilities: excels in medical equipment connections that require high bandwidth and low interference.
In short, Cat7 cables are suitable for scenarios that require high network performance, especially in environments that require high bandwidth, low interference and long distance transmission
Your question
Q1. Can I have some samples to test the quality?
A1: Yes, our samples are all provided for free.
Q2. Do you provide OEM/ODM project services?
A2: We support OEM/ODM service, please don't hesitate to tell us what you think.
Q3. If we place an order, when is the delivery time?
A3: It depends on the order quantity, small orders will be shipped within a week,
bulk orders need to be consulted and we will reply to you.
