Description
5 Key Advantages
- Zero Signal Degradation: 99.99% OFC conductors (≤148Ω/km resistance)
- All-Weather Durability: UV-resistant PE jacket (-40°C) / flame-retardant PVC (indoor)
- Installation Ready: Color-coded pairs reduce wiring errors by 30%
- 20-Year Lifespan: Anti-aging compound withstands extreme climates
- Eco-Compliant: Meets RoHS & REACH standards
Outdoor cable sheath using PE, indoor cable sheath using PVC, are suitable for overhead or buried construction, with green environmental protection, anti-aging, tensile waterproof, sunscreen, anti-freezing and other characteristics, long service life.
Pair twisted dense transmission stability using the specified color spectrum, two-core twisted into a pair, convenient construction of playing line, but also reduces the mutual interference between the pair of crosstalk.
More details
Technical Data
| Parameter | Specification |
|---|---|
| Conductor | 2×0.4mm Oxygen-Free Copper (OFC) |
| Insulation | High-Density Polyethylene (HDPE) |
| Jacket | Outdoor: Black PE / Indoor: Gray PVC |
| Temperature Range | -40°C to +70°C |
| Attenuation | ≤1.8dB/100m @ 1MHz |
| Tensile Strength | ≥12.5N/mm² (PE jacket) |

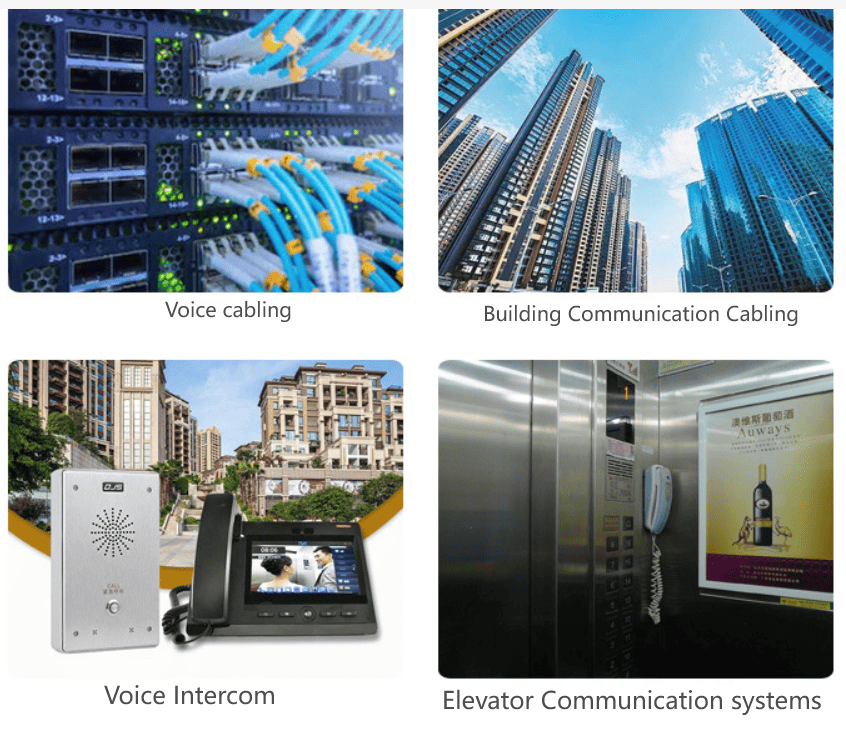

Widely used in the following occasions
FAQ
Q: Does aerial installation require extra UV protection?
A: No – PE jacket includes integrated UV stabilizers (tested to UV-8 rating).
Q: Can indoor/outdoor versions be mixed?
A: Strictly prohibited! Outdoor PE lacks flame retardancy – always use PVC indoors.
Q:Do you provide OEM/ODM project services?
A: We support OEM/ODM service, please don't hesitate to tell us what you think.
