YUEDAO Server Cabinets meets the needs of mid-to-high-end data centers and various airflow organization designs, effectively addressing localized hotspot heat dissipation issues in modern data centers. The main structure utilizes high-quality extruded aluminum profiles with strong load-bearing capacity, corrosion resistance, and excellent electrical conductivity, complemented by high-strength cold-rolled steel plates. The overall structure features a compact design with high safety standards. It is widely applicable for projects including computer network integration, intelligent building cabling, telecommunications, finance, smart communities, IDC data centers, and educational institutions.
l The cabinet body is constructed from high-quality cold-rolled steel plate. Both the top and bottom feature cable exit ports, with rubber grommets providing insulation protection for cable entry and exit points.
l The cabinet design boasts a compact cross-section, high stability, and substantial load-bearing capacity. The interior includes calibrated 19" mounting rails that are adjustable front-to-back for precise positioning and customizable installation.
l Cabinet components are manufactured for mass production and rapid on-site assembly.

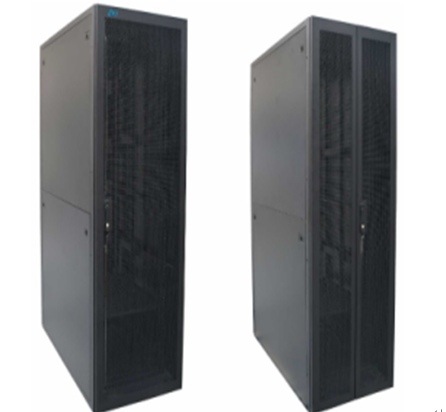

l Side doors feature a two-section design with snap-lock mechanisms, enabling tool-free installation and removal.
l Front and rear doors incorporate high-density perforated panels, achieving ventilation rates ≥75%.
l Professional grounding design enhances equipment safety.
l RMU scale markings are silk-screened onto U-rails for corrosion resistance and expedited equipment installation. Square mounting holes on the sides accommodate mounting plates and brackets.
